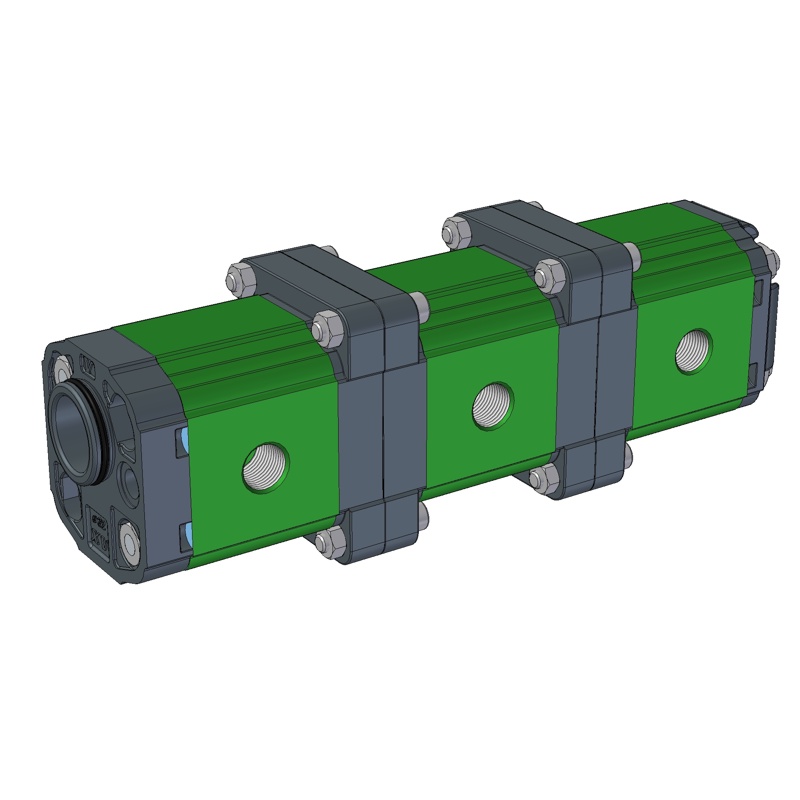

Multiple Hydraulic Pump ø32 Standard German BH FLANGE – Group 1

Multiple hydraulic pump already assembled in aluminium and with external gears, German standard.
It is a component of group 1 and of type BH, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on BH models.

Features and functions

The flange of this model has a diameter of 32 mm. You can choose the multiple pump in standard, at separate-stages, single inlet and shaped versions. We can supply this product with elements of different size groups in order to handle even flows that are very different from each other. For more information contact our sales office.

Technical Data

  • Displacements from 0.91 cm3/rev to 9.88 cm3/rev
  • Maximum pressures up to 300 bar
  • Rotation speeds up to 6000 rpm

Options available

  • Viton
  • Maximum pressure valve
  • Inlet and outlet in the body, front flange or back cover
  • Other shafts available:
    • Milled shaft
    • Splined shaft

In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.

Configurations

Elements
