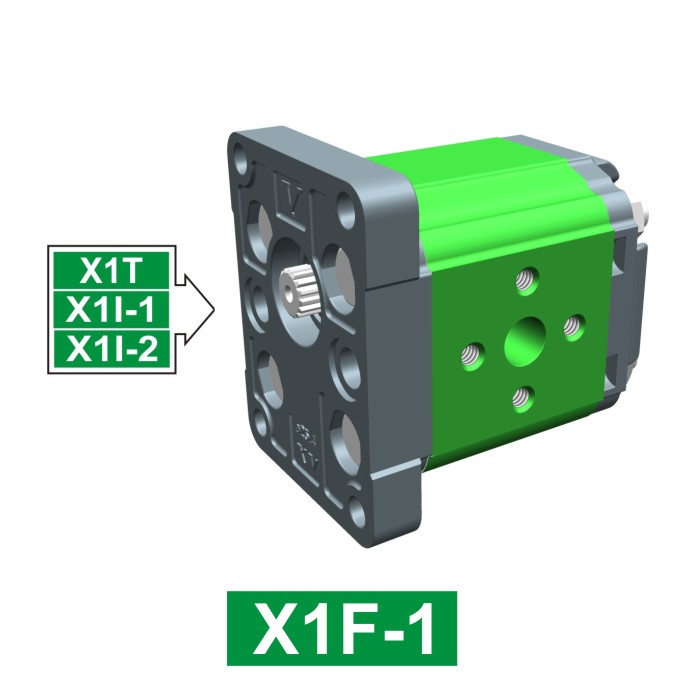

Final hydraulic pump, with external gears and in aluminium.
It is a component of group 1.
Features and functions
It is a multiple pump stage to be assembled together with other components of group 1. The flange of this model has a diameter of 25,4 mm, and is of the female type. Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.
Characteristic CurvesDownload the file 9mscc1.pdf ~61 KB
- Displacements from 0.91 cm3/rev to 9.88 cm3/rev
- Maximum pressures up to 300 bar
- Rotation speeds up to 6000 rpm
- Maximum pressure valve
- Inlet and outlet in the back cover
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
