Multiple Hydraulic Pump ø32 HY FLANGE – Group 1

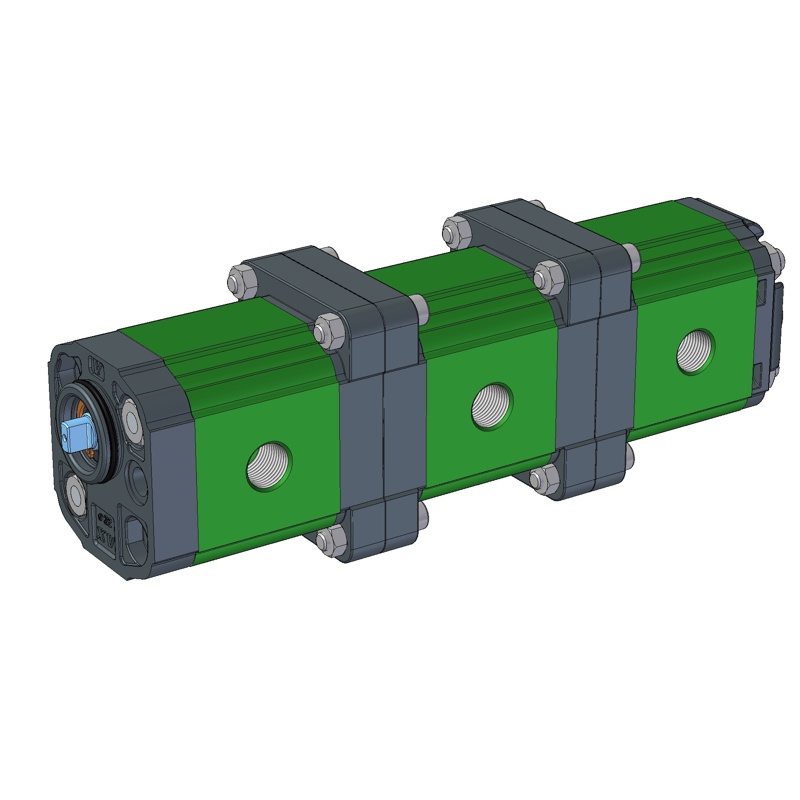

Multiple hydraulic pump already assembled, in aluminium and with external gears.
It is a component of group 1 and of type HY, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on HY models.

Features and functions

The flange of this model has a diameter of 32 mm. You can choose the multiple pump in standard, at separate-stages, single inlet and shaped versions. We can supply this product with elements of different size groups in order to handle even flows that are very different from each other. For more information contact our sales office.

Technical Data

  • Displacements from 0.91 cm3/rev to 9.88 cm3/rev
  • Maximum pressures up to 300 bar
  • Rotation speeds up to 6000 rpm

Options available

  • Viton
  • Maximum pressure valve
  • Inlet and outlet in the body, front flange or back cover
  • Double shaft
  • Other shafts available:
    • Tapered shaft 1:8 with key
    • Milled shaft
    • Splined shaft

In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.

Configurations

Elements
