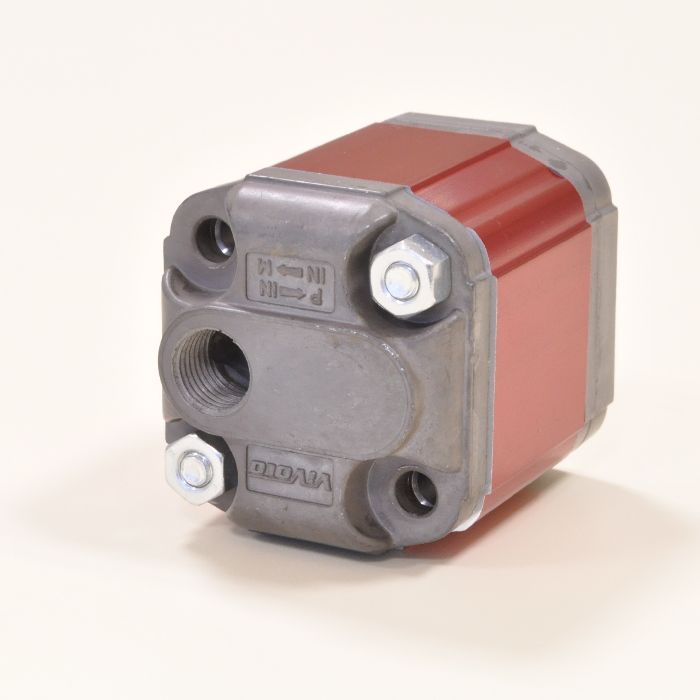

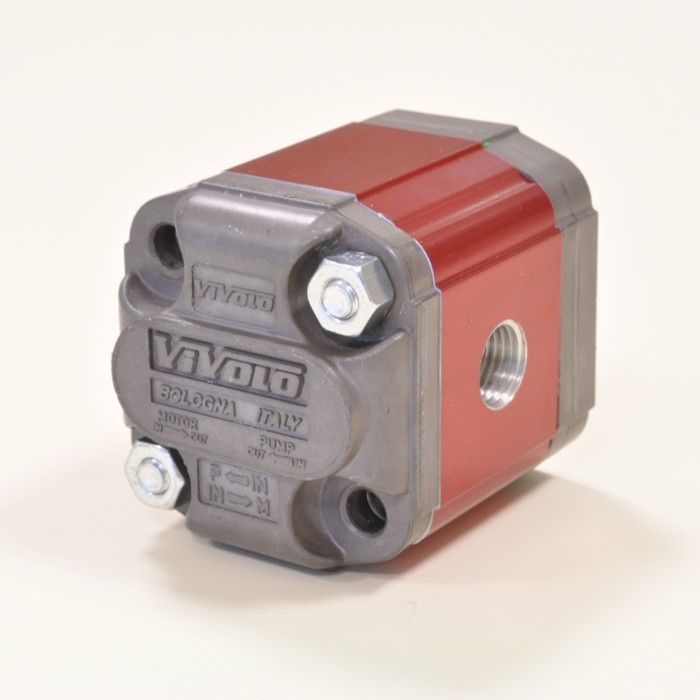

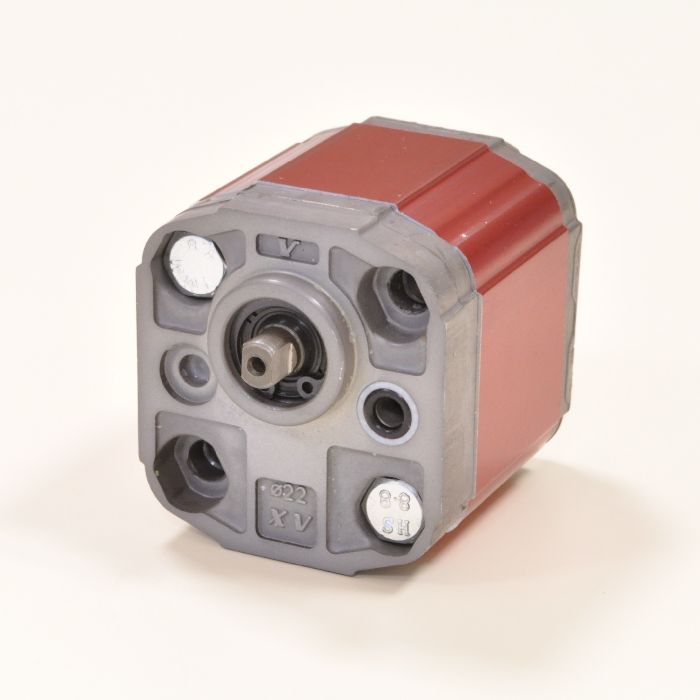

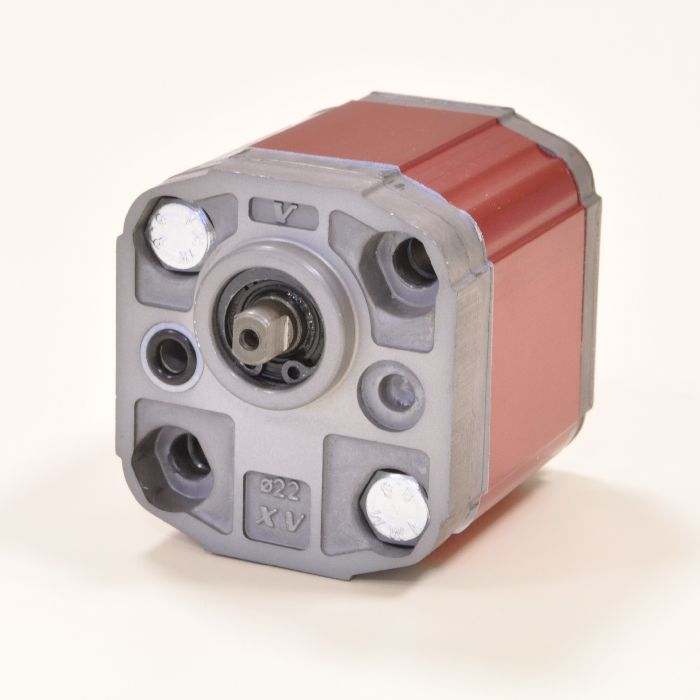

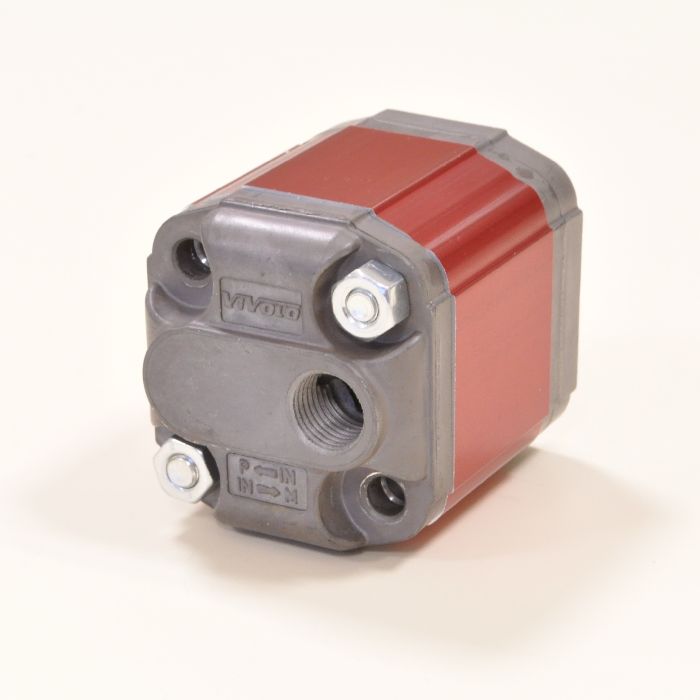

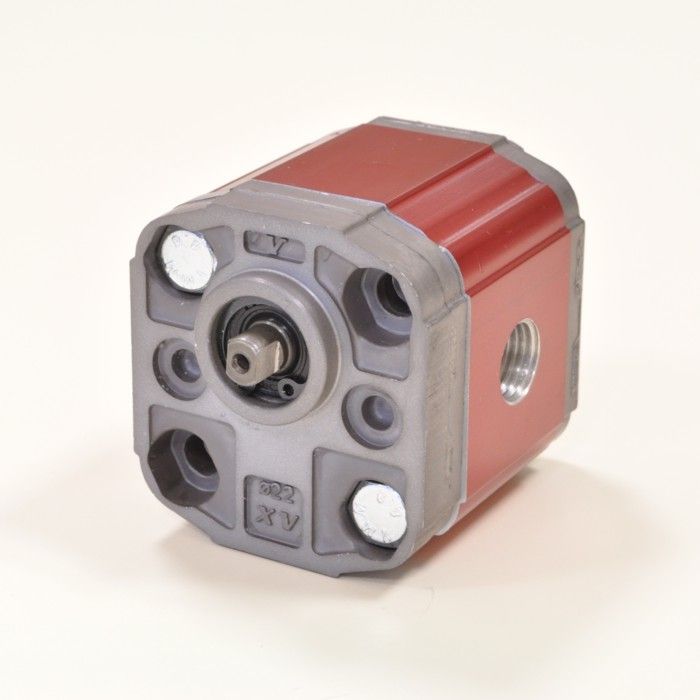

Shaped unidirectional hydraulic pump in aluminium with external gears.
It is a component of group 0 and of type BH, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on BH models.
Features and functions
The flange of this model has a diameter of 22 mm. The rotation verse of the pump is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs. Please refer to page 18 of this catalogue for instructions on changing the rotation verse.
* Valid for all versions of this model except those with the outlet or inlet in the front flange.
Characteristic CurvesDownload the file xpcc0.pdf $filesize = filesize( get_attached_file( $curves['ID'] ) ); $filesize = size_format($filesize, 0); echo ' ~' . $filesize; ?>
- Displacements from 0.16 cm3/rev to 2.28 cm3/rev
- Maximum pressures up to 280 bar
- Rotation speeds up to 9000 rpm
- Maximum pressure valve
- Double shaft
- Inlet and outlet in the body, front flange or back cover
- Other shafts available:
- Parallel shaft with key
- Milled shaft
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
