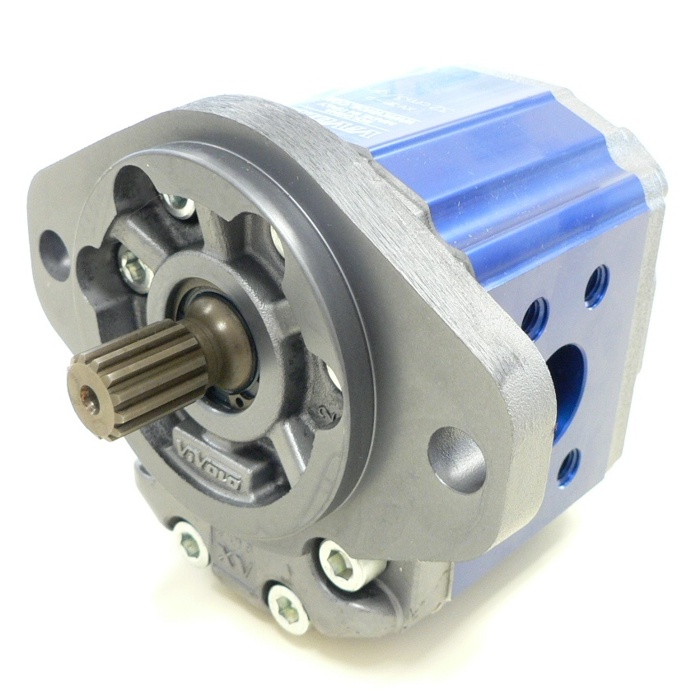

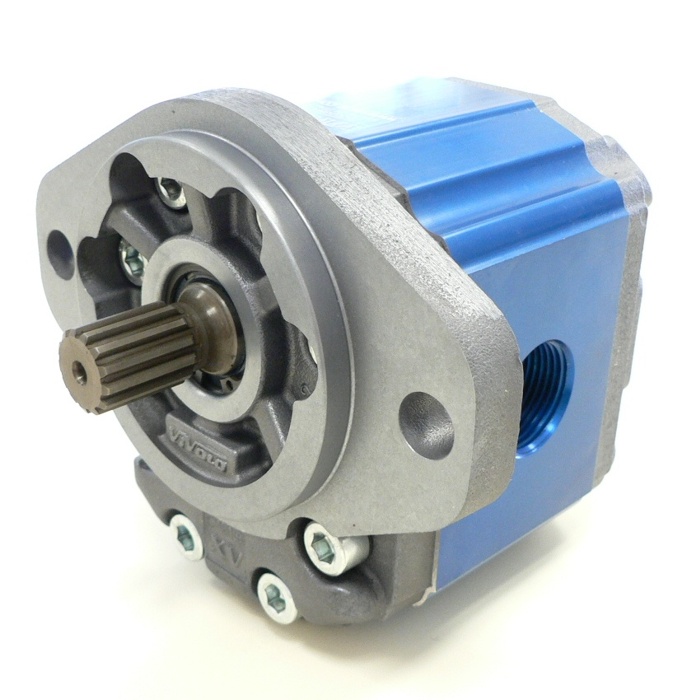

Reversible Hydraulic Motors ø101.6 SAE B FLANGE – Group 3

Reversible hydraulic motor in aluminium, and with external gears, of the SAE B type. It is a component of group 3.

Features and functions

The flange of this model has a diameter of 101,6 mm. Reversible products are used for some special applications and their rotation verse is alternately clockwise and counterclockwise. Therefore, if you are looking for a motor that must work in a single rotation verse clockwise or counterclockwise (possibly to be reversed according to your needs before mounting the product in the application), we recommend our hydraulic unidirectional motors, whose rotation verse can be changed without adding any components: go to the page of unidirectional motors of group 3

Characteristic Curves

 Download the file xmcc3.pdf ~55 KB

Technical Data

  • Displacements from 14.89 cm3/rev to 86.87cm3/rev
  • Maximum pressures up to 320 bar
  • Rotation speeds up to 3000 rpm

Options available

  • Viton
  • Inlet and outlet in the body, front flange or back cover
  • Internal drain
  • Available shafts:
    • Tapered shaft 1:8 with key
    • Parallel shaft with key
    • Splined shaft

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
