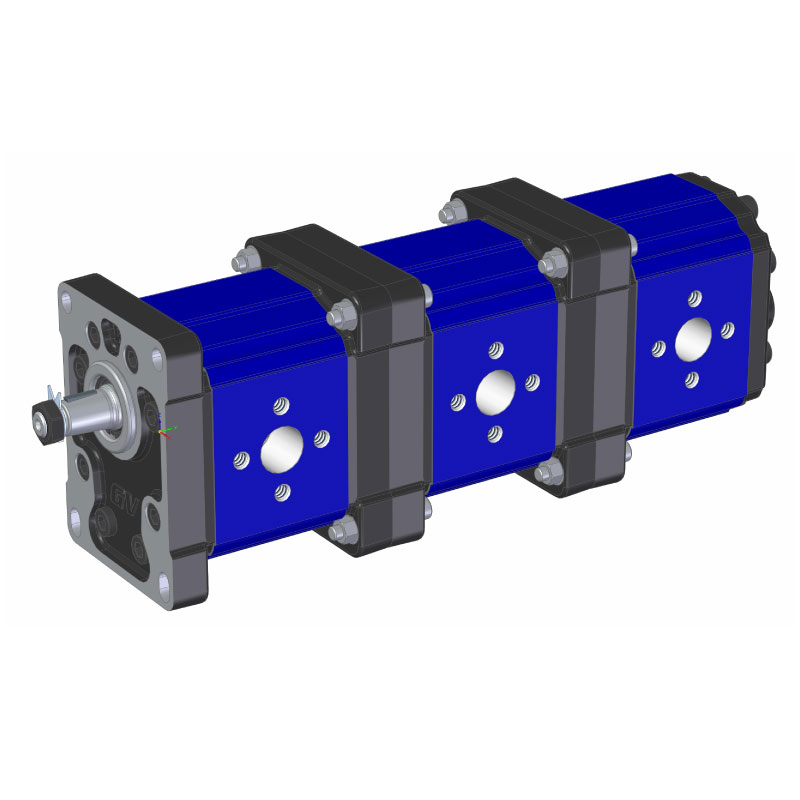

European Standard Multiple Pump Ø50.8 Cast Iron Flange GM301

Multiple hydraulic pump already assembled, with external gears, with cast iron flange and cover. It is a component of group 3.

Features and functions

The flange of this model has a diameter of 50.8 mm. We can supply this product with elements of different size groups in order to handle even flows that are very different from each other. For more information contact our sales office.

Technical Data

  • Displacements from 14.89 cm3/rev to 86.87 cm3/rev
  • Maximum pressures up to 320 bar
  • Rotation speeds up to 3000 rpm

Options

  • Viton

In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.

Configurations

  • GM301 – POMPA MULTIPLA BASE ø50.8 STANDARD EUROPEA

Elements
