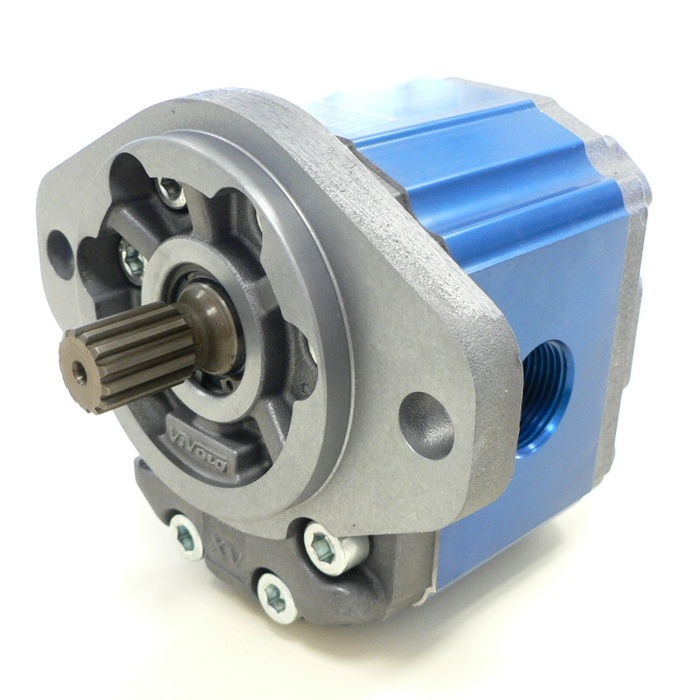

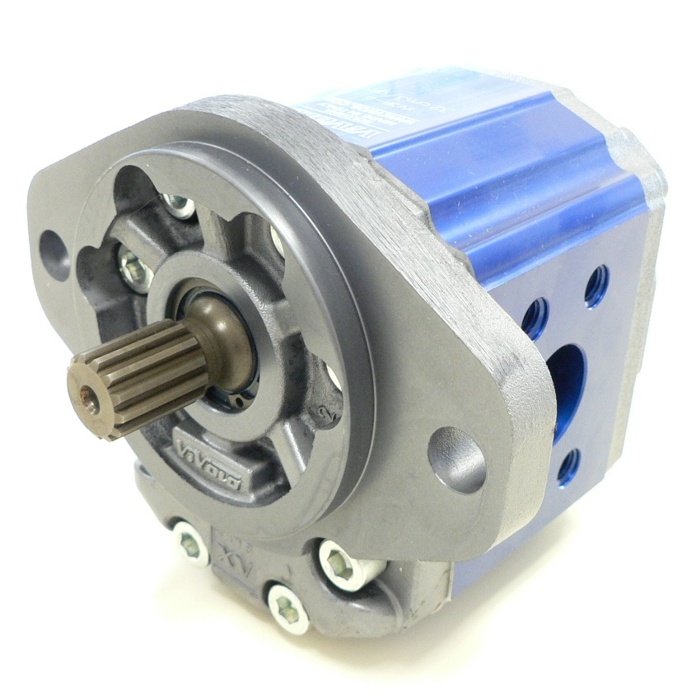

Unidirectional Hydraulic Motors ø101.6 SAE B FLANGE – Group 3

Unidirectional hydraulic motor in aluminium and with external gears, of the SAE B type.
It is a component of group 3.

Features and functions

The flange of this model has a diameter of 101,6 mm. The rotation verse of the motor is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs. Please refer to page 29 of this catalogue for instructions on changing the rotation verse.
* Valid for all versions of this model except those with the outlet or inlet in the front flange

Characteristic Curves

 Download the file xucc3.pdf ~43 KB

Technical Data

  • Displacements from 14.89 cm3/rev to 86.87cm3/rev
  • Maximum pressures up to 320 bar
  • Rotation speeds up to 3000 rpm

Options available

  • Viton
  • Maximum pressure valve
  • Anti-cavitation valve
  • Inlet and outlet in the body, front flange or back cover
  • Available shafts:
    • Tapered shaft 1:8 with key
    • Parallel shaft with key
    • Splined shaft

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
