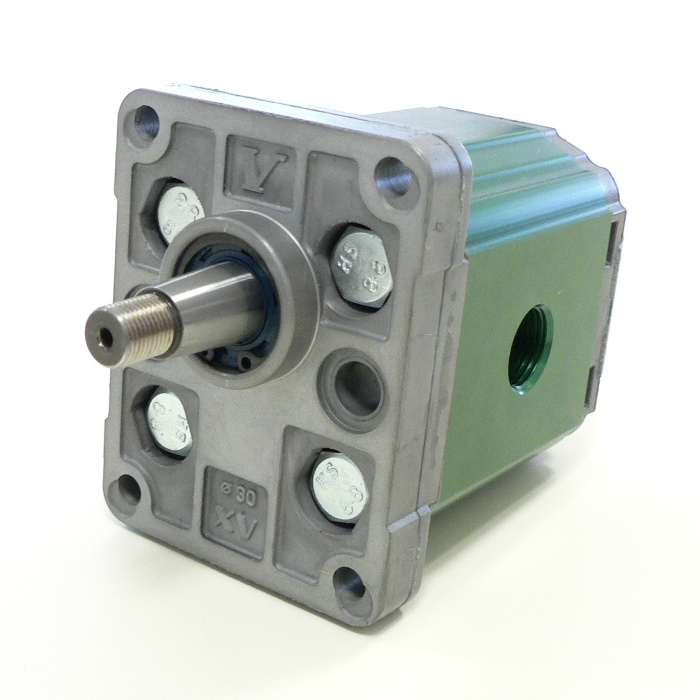

Standard unidirectional hydraulic motor in aluminium with external gears.
It is a component of group 1.
Features and functions
The flange of this model has a diameter of 30 mm. The rotation verse of the motor is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs. Please refer to page 20 of this catalogue for instructions on changing the rotation verse.
* Valid for all versions of this model except those with the outlet or inlet in the front flange
Characteristic CurvesDownload the file xucc2.pdf ~41 KB
- Displacements from 0.91 cm3/rev to 9.88 cm3/rev
- Maximum pressures up to 300 bar
- Rotation speeds up to 6000 rpm
- Maximum pressure valve
- Anti-cavitation valve
- Inlet and outlet in the body, front flange or back cover
- Available shafts:
- Tapered shaft 1:8 with key
- Parallel shaft with key
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
