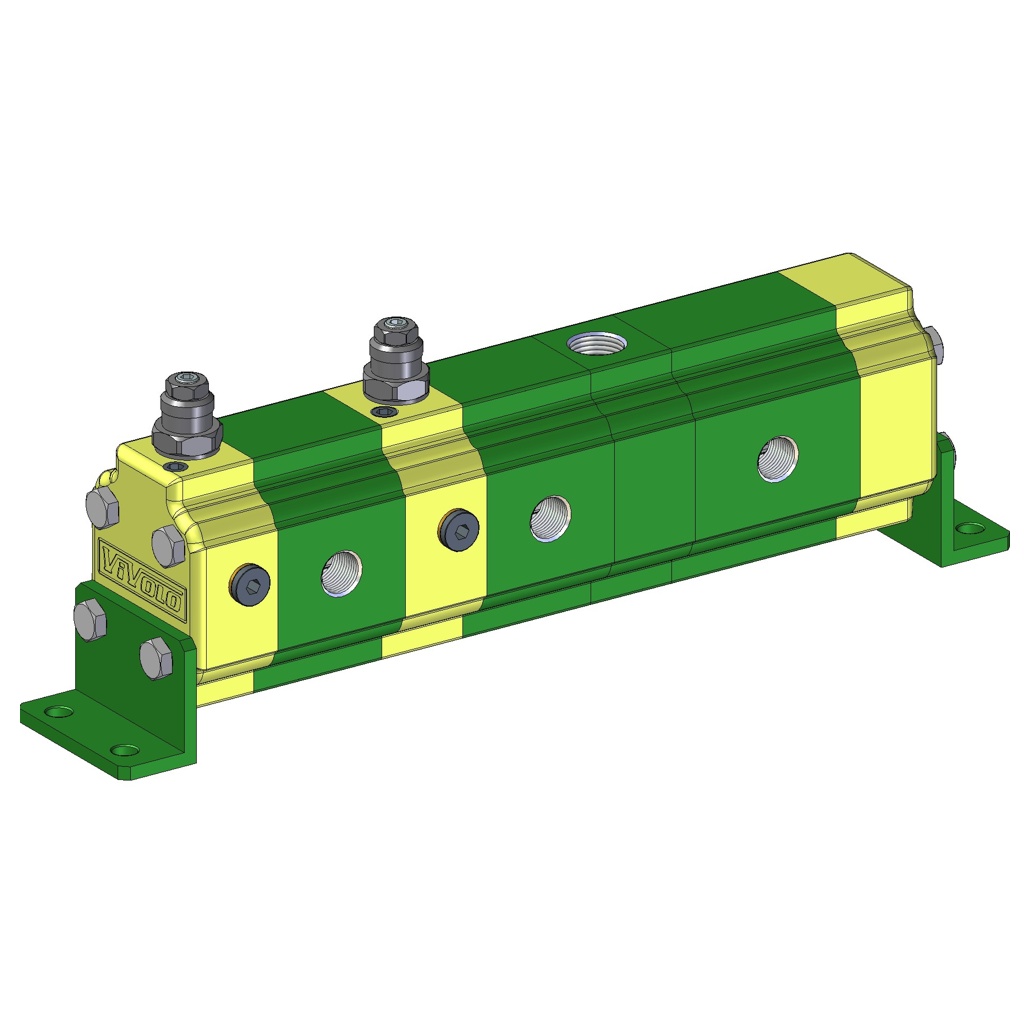

Flow Divider Valves + Motor – Group 1

Flow divider in aluminium, and with external gears, with single relief valves, anti-cavitation valves and motor. It is a component of group 1, and it is high-precision like all products in this category.

Features and functions

This model is designed to divide the flow, and is the motorized version of the RV-V divider.
The motor has the same function that it performs in the divider RV-G: it is connected to the flow divider elements and is very useful when the incoming and/or outgoing pressure of the divider is below the minimum pressure required to start, because, by fueling the motor, the divider can still be operated.

Characteristic Curves

 Download the file rvcc01-en-vivoil.pdf ~242 KB

Technical Data

  • Displacements from 0.91 cm3/rev to 9.88 cm3/rev
  • Maximum pressures up to 210 bar
  • Rotation speeds up to 6500 rpm

Options available

  • Viton

Configurations

  • RV-1N – FLOW DIVIDERS WITH SINGLE PHASE CORRECTION AND ANTI-CAVITATION VALVES + MOTOR

    Data sheet and technical drawings

     Download the data sheet rv1n.pdf (472 KB)

Elements
