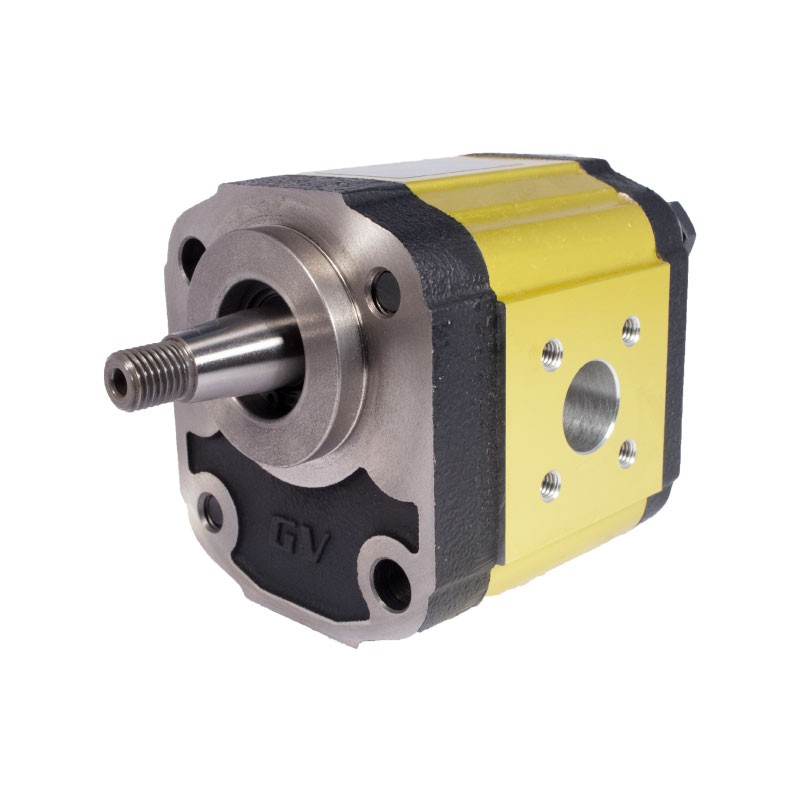

Standard unidirectional hydraulic pump with external gears, with cast iron flange and cover.
It is a component of group 2 and of the HY type, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on the HY models.
Features and functions
The flange of this model has a diameter of 50 mm. The pump’s direction of rotation is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs.
* Valid for all versions of this model except those with the outlet or inlet in the front flange
Characteristic CurvesDownload the file xpcc2.pdf ~41 KB
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 310 bar
- Rotation speeds up to 3500 rpm
Options available for this model
- Motor shaft seal
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
