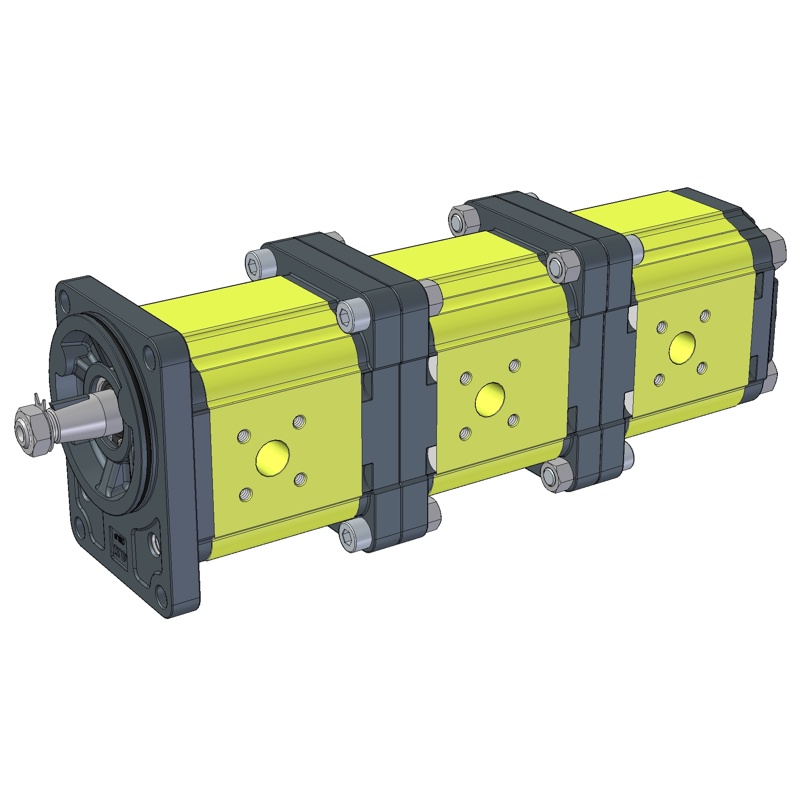

Multiple Hydraulic Pump ø80 Standard German FLANGE – Group 2

Multiple hydraulic pump already assembled, in aluminium and with external gears, German standard. It is a component of group 2.

Features and functions

The flange of this model has a diameter of 80 mm. You can choose the multiple pump in standard, at separate-stages, single inlet and shaped versions. We can supply this product with elements of different size groups in order to handle even flows that are very different from each other. For more information contact our sales office.
This model is also available with cast iron flange.

Technical Data

  • Displacements from 4.2 cm3/rev to 39.6 cm3/rev
  • Maximum pressures up to 300 bar
  • Rotation speeds up to 3500 rpm

Options available

  • Viton
  • Maximum pressure valve
  • Shaft seal
  • Integrated outboard bearings
  • Inlet and outlet in the body or back cover
  • Double shaft
  • Other shafts available:
    • Tapered shaft 1:8 with key
    • Parallel shaft with key
    • Splined shaft

In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.

Configurations

Elements
