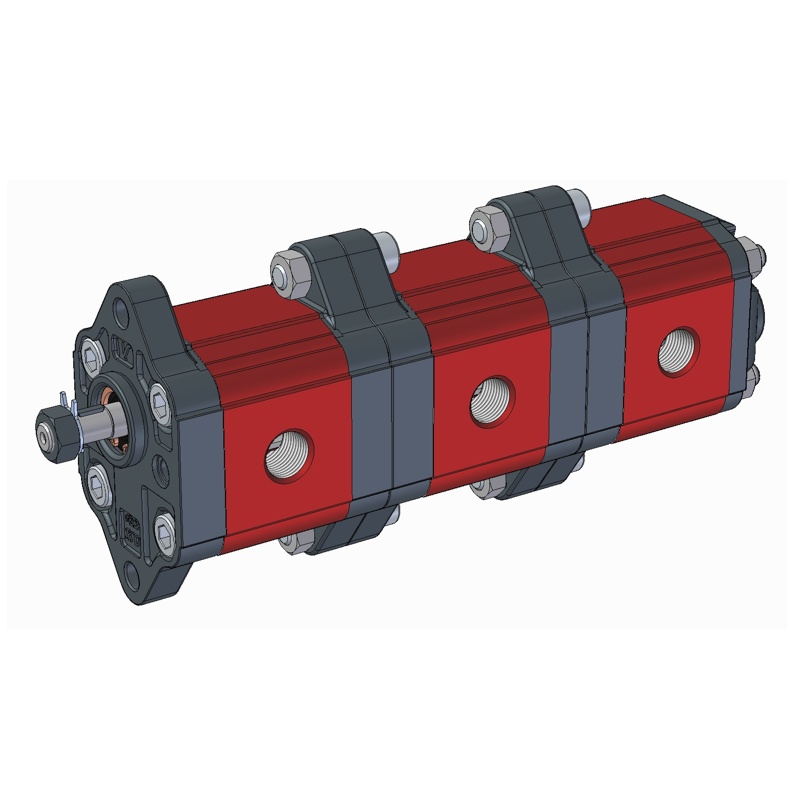

Multiple Hydraulic Pump ø22 Standard FLANGE – Group 0

Standard multiple hydraulic pump, already assembled, in aluminium and with external gears. It is a component of group 0.

Features and functions

The flange of this model has a diameter of 22 mm. You can choose the multiple pump in the standard, single inlet and shaped versions. For more information contact our sales office.

Technical Data

  • Displacements from 0.16 cm3/rev to 2.28 cm3/rev
  • Maximum pressures up to 280 bar
  • Rotation speeds up to 9000 rpm

Options available for this model

  • Viton
  • Maximum pressure valve
  • Inlet and outlet in the body, front flange or back cover
  • Other shafts available:
    • Parallel shaft with key
    • Milled shaft

In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.
