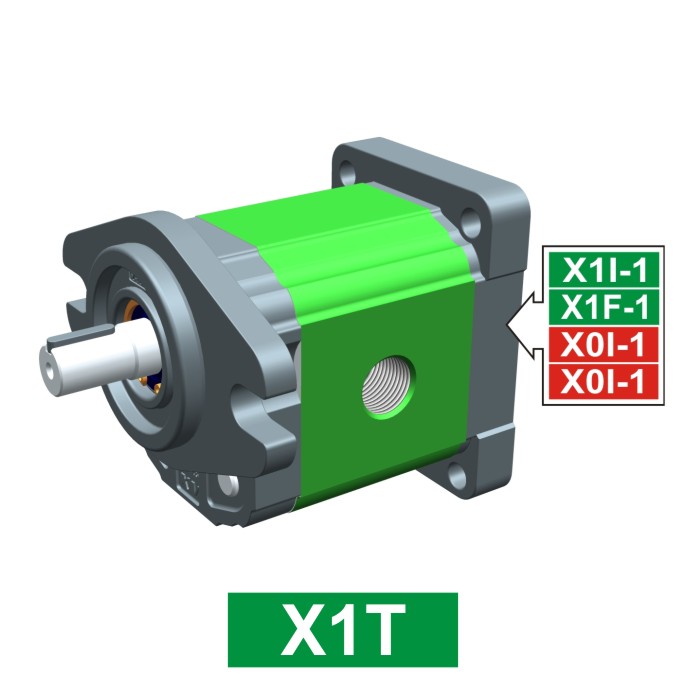

Primary hydraulic pump, with external gears and in aluminium, of the SAE AA type.
It is a component of group 1.
Features and functions
It is a multiple pump stage to be assembled together with other components of group 0 and of group 1. The flange of this model has a diameter of 50,8 mm. Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.
Characteristic CurvesDownload the file 9mscc1.pdf ~61 KB
- Displacements from 0.91 cm3/rev to 9.88 cm3/rev
- Maximum pressures up to 300 bar
- Rotation speeds up to 6000 rpm
- Inlet and outlet in the body
- Available shafts:
- Tapered shaft 1:8 with key
- Parallel shaft with key
- Milled shaft
- Splined shaft
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
