Primary Pump ø22 BH Body-Shaped FLANGE – Group 0

Shaped primary hydraulic pump, with external gears and in aluminium.

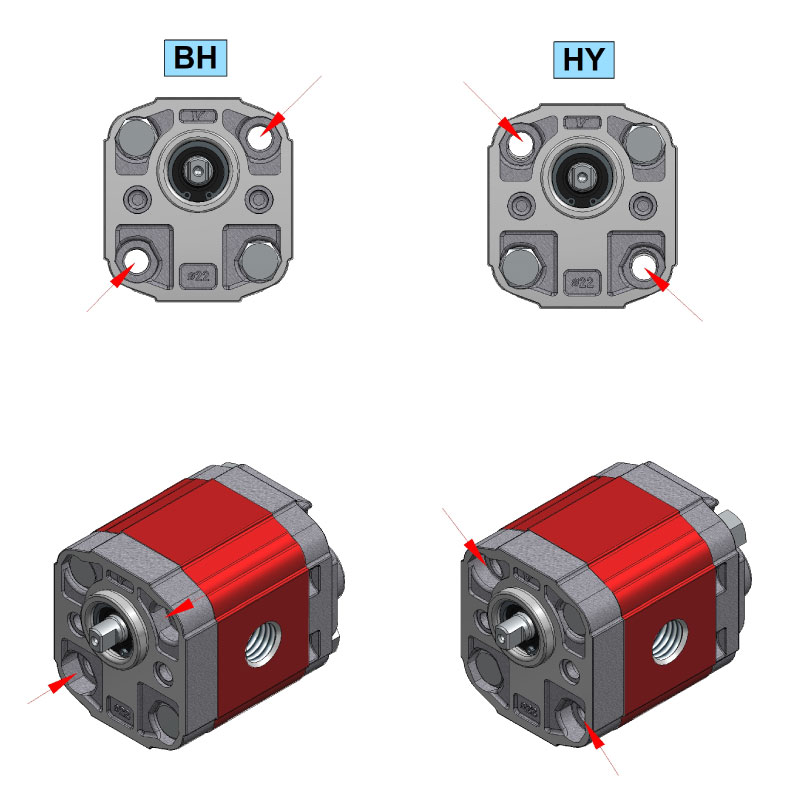

It is a component of group 0 and of type BH, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on BH models.

Features and functions

It is a multiple pump stage to be assembled together with other components of group 0.
The flange of this model has a diameter of 22 mm.
Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.

Characteristic Curves

 Download the file 9mscc0.pdf ~62 KB

Technical Data

  • Displacements from 0.16 cm3/rev to 2.28 cm3/rev
  • Maximum pressures up to 280 bar
  • Rotation speeds up to 9000 rpm

Options available

  • Viton
  • Inlet and outlet in the body or the front flange
  • Available shafts:
    • Parallel shaft with key
    • Milled shaft

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.

Configurations

Elements
