Flow Divider Valves – Group 2

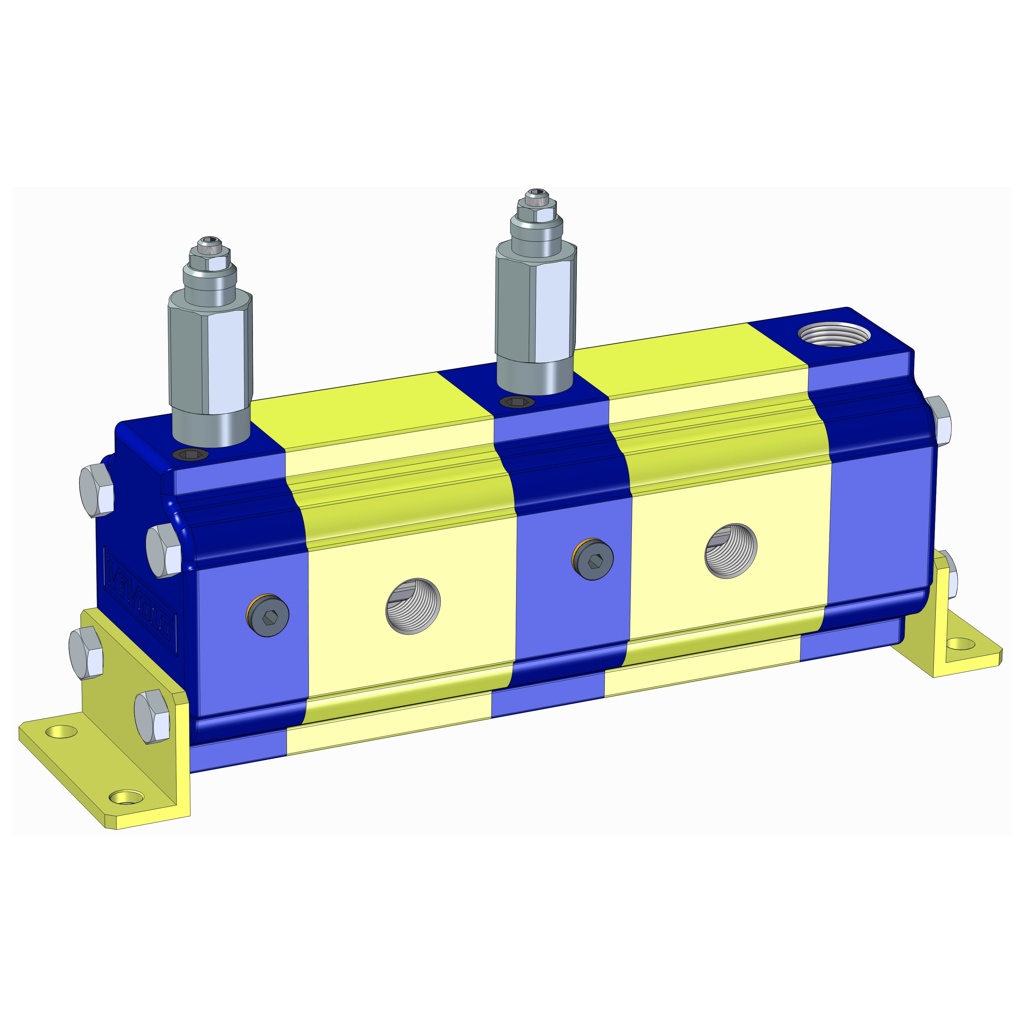

Flow divider in aluminium, and with external gears, with single relief and anti-cavitation valves. It is a component of group 2, and it is high-precision like all products in this category.

Features and functions

This model is designed to divide the flow, has a single relief valve and an anti-cavitation valve for each individual element, so it allows the error reset both, in the direction of flow division, and in the direction of flow unification. You can also calibrate the valves to different pressures for each individual element.

Technical Data

  • Displacements from 4.2 cm3/rev to 39.6 cm3/rev
  • Maximum pressures up to 210 bar
  • Rotation speeds up to 2500 rpm

Options available

  • Viton

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
Please note: in the code, we haven’t inserted the identifier of the valve adjustment range, because the valves have all equivalent sizes.

Configurations

Elements
