Standard German BH Primary Pump Ø52 Cast Iron Flange GT216

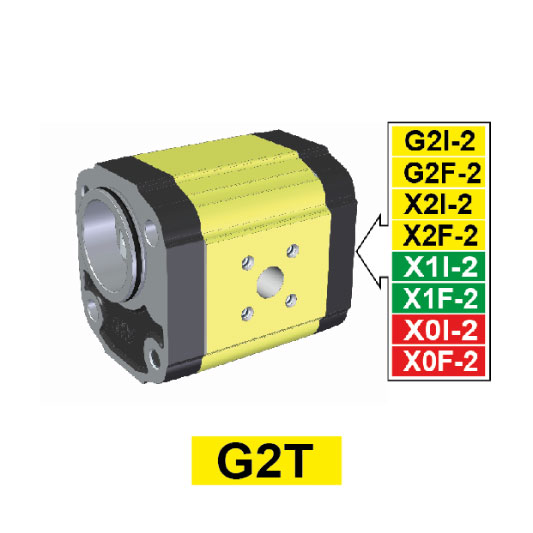

Primary hydraulic pump with external gears, with cast iron flange and cover, German standard. It is a component of group 2 and of the BH type, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on BH models.

Features and functions

It is a multiple pump stage to be assembled together with other components of group 0, group 1, and group 2. The flange of this model has a diameter of 52 mm. Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.

Characteristic Curves

 Download the file 9mscc2.pdf ~58 KB

Technical Data

  • Displacements from 4.2 cm3/rev to 39.6 cm3/rev
  • Maximum pressures up to 310 bar
  • Rotation speeds up to 3500 rpm

Options

  • Viton

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.

Configurations

  • GT216 – POMPA TRASCINATRICE BASE ø52 BH UNIFICAZIONE TEDESCA
