Standard primary hydraulic pump, with external gears, with cast iron flange and cover. It is a component of group 2 and of the BH type, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on BH models.
Features and functions

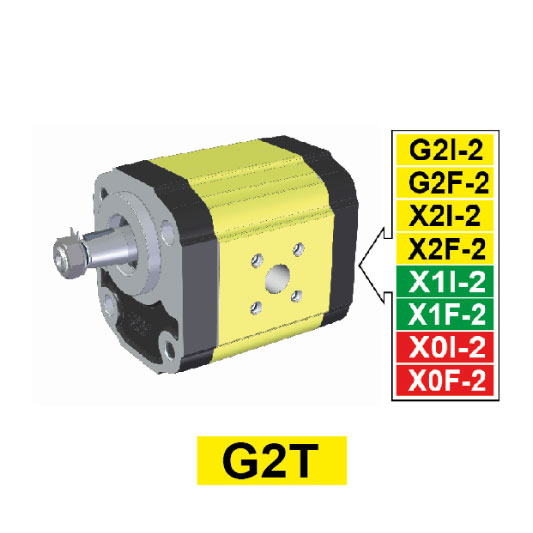

It is a multiple pump stage to be assembled together with other components of group 0, group 1, and group 2. The flange of this model has a diameter of 50 mm. Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.
Characteristic CurvesDownload the file 9mscc2.pdf $filesize = filesize( get_attached_file( $curves['ID'] ) ); $filesize = size_format($filesize, 0); echo ' ~' . $filesize; ?>
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 310 bar
- Rotation speeds up to 3500 rpm
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
