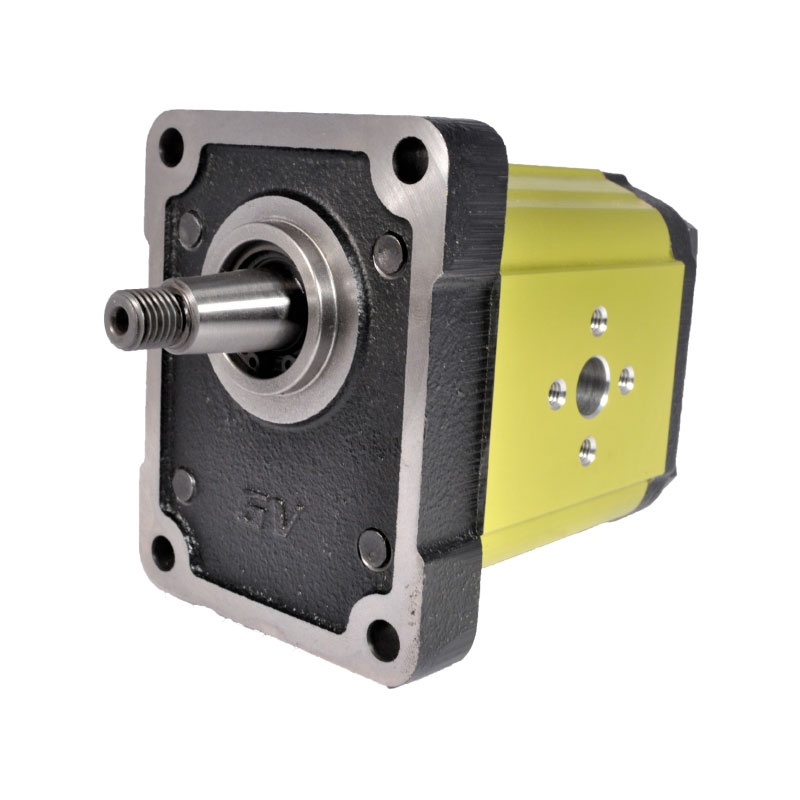

Reversible hydraulic pump with external gears, with cast iron flange and cover. It is a component of group 2.
Features and functions
The flange of this model has a diameter of 36.5 mm. Reversible products are used for some special applications and their rotation verse is alternately clockwise and counterclockwise. Therefore, if you are looking for a pump that must work with a single rotation verse clockwise or counterclockwise (possibly to be reversed according to your needs before mounting the product in the application), we recommend our unidirectional hydraulic pumps, whose rotation verse can be changed without adding any components: go to the page of unidirectional pumps with cast iron flanges of the group 2.
Characteristic CurvesDownload the file xrcc2.pdf ~58 KB
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 310 bar
- Rotation speeds up to 3500 rpm
- Motor shaft seal
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
