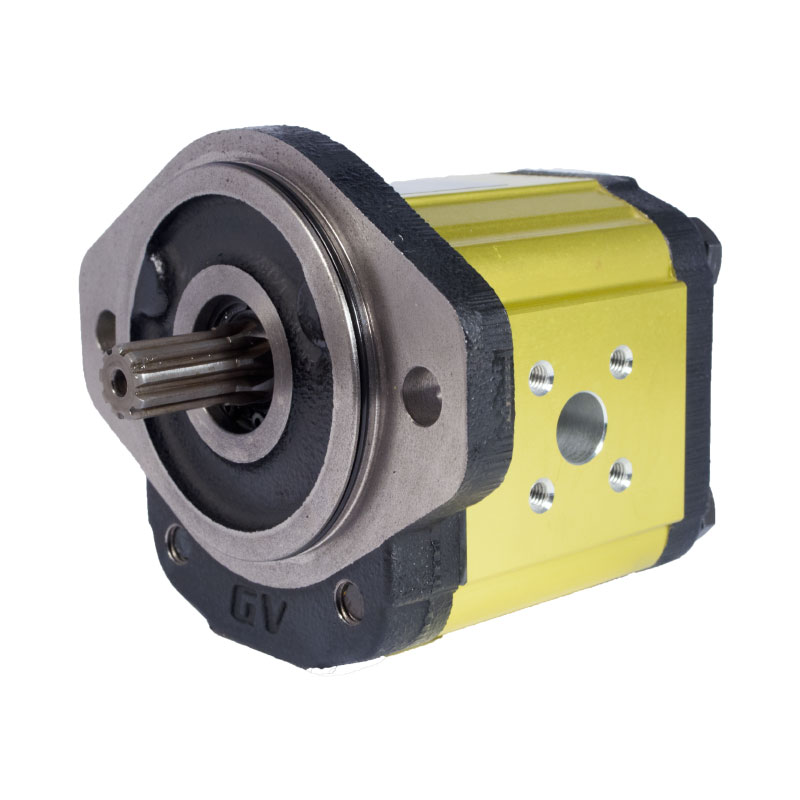

SAE A Type Pump Ø82.5 Cast Iron Flange GP219

Standard unidirectional hydraulic pump with external gears, with cast iron flange and cover. It is a component of the SAE-A type and belongs to the group 2.

Features and functions

The flange of this model has a diameter of 82.5 mm. The pump’s direction of rotation is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs.

* Valid for all versions of this model except those with the outlet or inlet in the front flange

Characteristic Curves

 Download the file xpcc2.pdf ~41 KB

Technical Data

  • Displacements from 4.2 cm3/rev to 39.6 cm3/rev
  • Maximum pressures up to 310 bar
  • Rotation speeds up to 3500 rpm

Options

  • Viton
  • Motor shaft seal

In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.

Configurations

Elements
