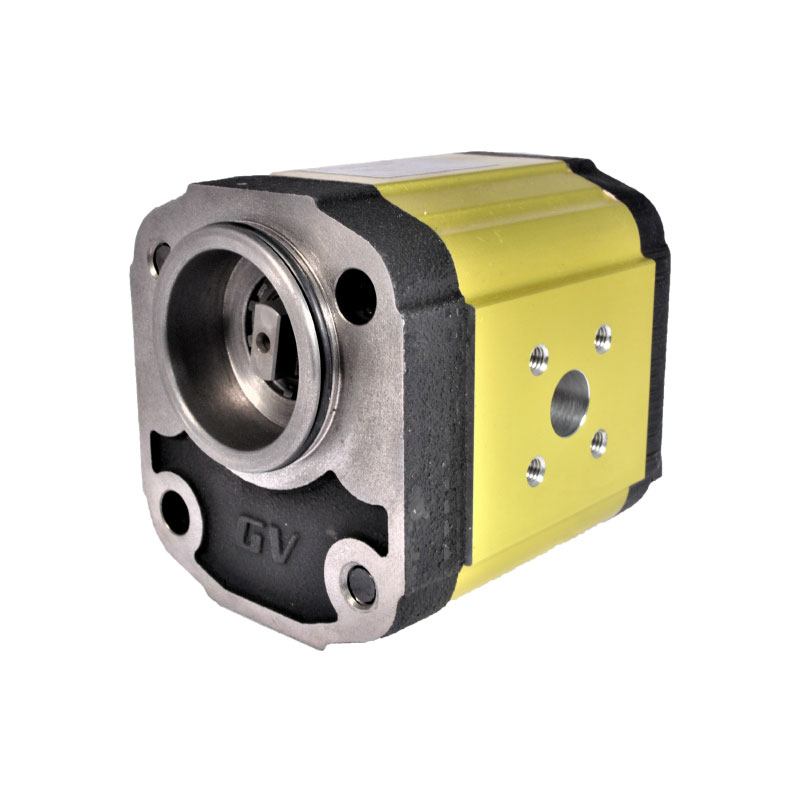

Standard unidirectional hydraulic pump with external gears, with cast iron flange and cover, German standard.
It is a component of group 2 and of the BH type, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on the BH models.
Features and functions
The flange of this model has a diameter of 52 mm. The pump’s direction of rotation is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs.
* Valid for all versions of this model except those with the outlet or inlet in the front flange
Characteristic CurvesDownload the file xpcc2.pdf ~41 KB
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 310 bar
- Rotation speeds up to 3500 rpm
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
