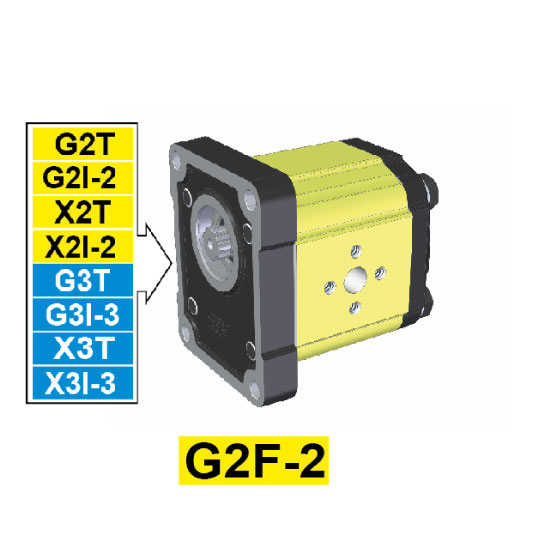

Final hydraulic pump with external gears, with cast iron flange and cover. It is a component of group 2.
Features and functions
It is a multiple pump stage to be assembled together with other components of group 2, and group 3. The flange of this model has a diameter of 36.5 mm and is of the female type. Stages are useful to always have in stock the pieces needed to compose multiple pumps based on your needs.
Characteristic CurvesDownload the file 9mscc2.pdf $filesize = filesize( get_attached_file( $curves['ID'] ) ); $filesize = size_format($filesize, 0); echo ' ~' . $filesize; ?>
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 310 bar
- Rotation speeds up to 3500 rpm
In the following tables you will find the most common versions of this product in STEP format. For other configurations please contact our technical office.
