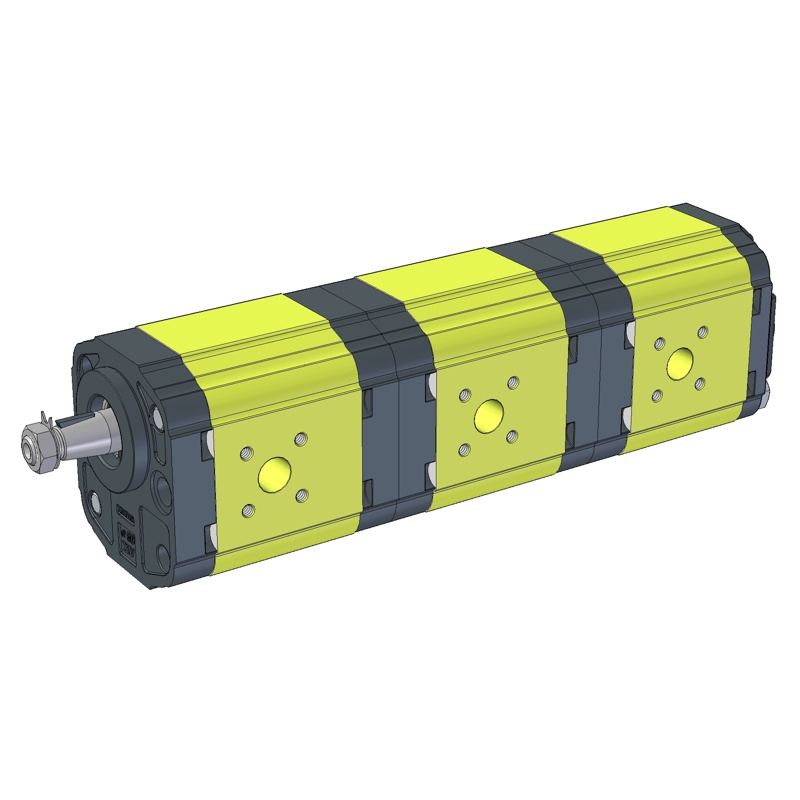

Multiple hydraulic pump already assembled, in aluminium, and with external gears.
It is a component of group 2 and of type HY, according to our product classification for the application of screws. In the following/adjacent figure, you will find a diagram showing where the empty holes for the fixing screws are located on HY models.
Features and functions
The flange of this model has a diameter of 50 mm. You can choose the multiple pump in separate stages, single inlet and shaped (standard) versions. We can supply this product with elements of different size groups in order to handle even flows that are very different from each other. For more information contact our sales office.
This model is also available with cast iron flange.
- Displacements from 4.2 cm3/rev to 39.6 cm3/rev
- Maximum pressures up to 300 bar
- Rotation speeds up to 3500 rpm
- Maximum pressure valve
- Shaft seal
- Inlet and outlet in the body, front flange or back cover
- Double shaft
- Other shafts available:
- Tapered shaft 1:8 with key
- Parallel shaft with key
- Splined shaft
In the following table you will find the multiple pump stages (primary, intermediate, final) that can be mounted on this product.
