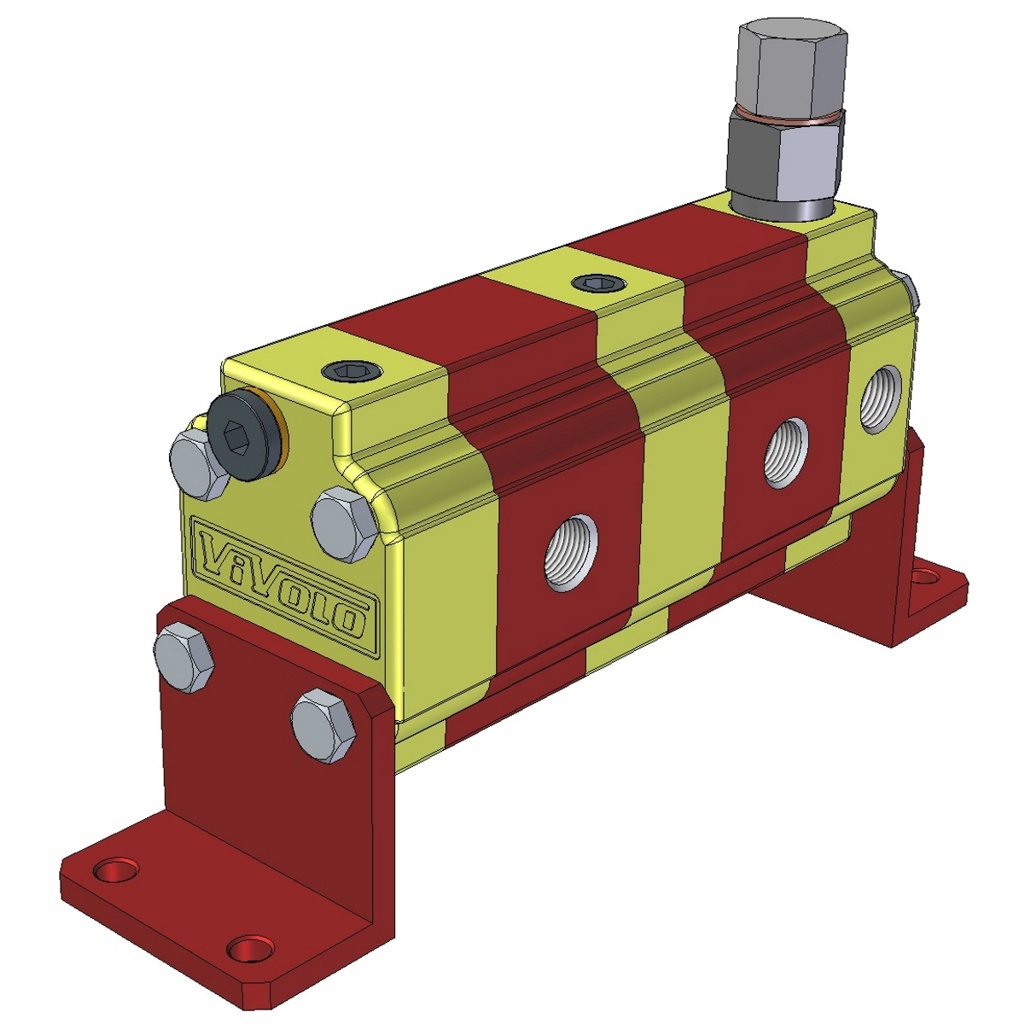

Flow Divider Single Valve – Group 0

Configurations

• RV-0S – FLOW DIVIDERS WITH SINGLE PHASE CORRECTION VALVE

  Images et dessins



  Fiche de données et dessins techniques

   Télécharger la fiche de données rv0s.pdf (392 Ko)

  Modèles 3D en format STEP

  Cylindrées cc	2 elements	3 elements	4 elements	5 elements	6 elements	7 elements	8 elements
  0.17	9RS02-01293 Ko	9RS03-01329 Ko	9RS04-01366 Ko	9RS05-01403 Ko	9RS06-01439 Ko	9RS07-01475 Ko	9RS08-01510 Ko
  0.25	9RS02-02293 Ko	9RS03-02329 Ko	9RS04-02365 Ko	9RS05-02403 Ko	9RS06-02439 Ko	9RS07-02475 Ko	9RS08-02510 Ko
  0.45	9RS02-04293 Ko	9RS03-04329 Ko	9RS04-04366 Ko	9RS05-04403 Ko	9RS06-04439 Ko	9RS07-04476 Ko	9RS08-04510 Ko
  0.57	9RS02-05294 Ko	9RS03-05330 Ko	9RS04-05366 Ko	9RS05-05403 Ko	9RS06-05440 Ko	9RS07-05476 Ko	9RS08-05511 Ko
  0.76	9RS02-06294 Ko	9RS03-06330 Ko	9RS04-06366 Ko	9RS05-06404 Ko	9RS06-06440 Ko	9RS07-06476 Ko	9RS08-06511 Ko
  0.98	9RS02-07294 Ko	9RS03-07330 Ko	9RS04-07366 Ko	9RS05-07403 Ko	9RS06-07439 Ko	9RS07-07476 Ko	9RS08-07511 Ko
  1.27	9RS02-09294 Ko	9RS03-09330 Ko	9RS04-09365 Ko	9RS05-09403 Ko	9RS06-09439 Ko	9RS07-09475 Ko	9RS08-09510 Ko
  1.52	9RS02-11294 Ko	9RS03-11330 Ko	9RS04-11365 Ko	9RS05-11403 Ko	9RS06-11439 Ko	9RS07-11475 Ko	9RS08-11510 Ko
  2.30	9RS02-13294 Ko	9RS03-13329 Ko	9RS04-13365 Ko	9RS05-13403 Ko	9RS06-13439 Ko	9RS07-13476 Ko	9RS08-13511 Ko
